TN-70

TN-70

TN-70

Excellence for the operability, the durableness, and the high-precision

FEATURES

Selection of rake angle or top angle for grinding can be done by simple operation.
One-pass grinding and oscillation grinding for both rake and top angles be selected by easy operation.
Various setups for the grinding can be accomplished through interactive and numerical setting.
Combination type saw blades with varying rake angles can be ground by a single process of operation.
Specially-designed motor prevents a drop of wheel rotational speed due to a change of grinding load.
Wheel shaft is directly coupled to the motor shaft for vibration-free operation, thus realizing highly accurate grinding results.

VIDEO

SPECIFICATIONS

Diameter Capacity: 150mm ～ 660mm dia
Grinding pitch Capacity: 5mm ～ 75mm
Tooth feed speed, Grinding speed: 10 speeds, 4P～16P (per minute)
Gringing wheel tilt angle: Rake：0°～ 20°
Top：0°～ 15°
Grinding wheel dimention: 140mm dia
Grinding wheel rotation: 4,100 RPM
Grinding wheel Output (Special motor): 0.4kW ～ 1.2kW
Maximum power consumption: 1.5kW
Install Dimension: 865mm × 965mm
Machine Sizes (Height, Width and Depth): 1,800mm×950mm×1,065mm
Machine Weight: 730kg

逃げ研磨の状態 — Grinding of top surface

NORMAL TOOTH PATTERN
Preset patterns by Tokai Netsushori

刃型パターン

The teeth can be set opposing on left and right with the Angle Invert switch or Tooth combi Reset R(or L) switch.
The F, G, H, I, J, K, L are spares (pattern setting options) and can be set by the user for tooth types other than those shown left.
Grinding with saws such as for flat teeth having different positions for the ABCDE and F tooth types can also be performed by changing the settings on the tooth combi counter.
Pocket combinations can also be changed.

CONTACT US

Contact us with any requests for repairs, modifications, or other inquiries.

+81-53834-5151 Contact us by e-mail

PRODUCTS

Tipped saw grinding machine

TN-70Dual-purpose type for Rake and Top

For more information

Tipped saw grinding machine

TN-8For Top surface type

For more information

Tipped saw grinding machine

TN-85All-purpose type for Rake and Top, Breaker and Negative

For more information

Tipped saw grinding machine

TN-21Dual-purpose type for Breaker and Negative

For more information

Tipped saw grinding machine

TN-22For Notch surface type

For more information

Tipped saw grinding machine

TN-50For side surface type

For more information

Tipped saw grinding machine

TN-51Full covered type for side grinding

For more information

Tipped saw body grinding machine

TN-30

For more information

RELATED PRODUCTS

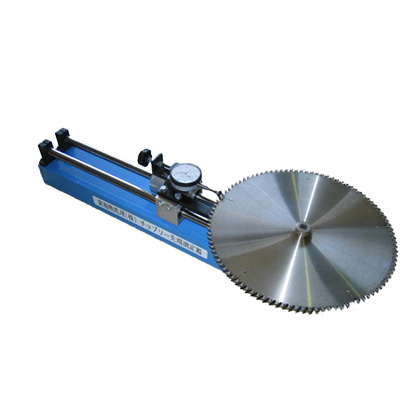

Height Difference Checker for Tipped Saw Top
