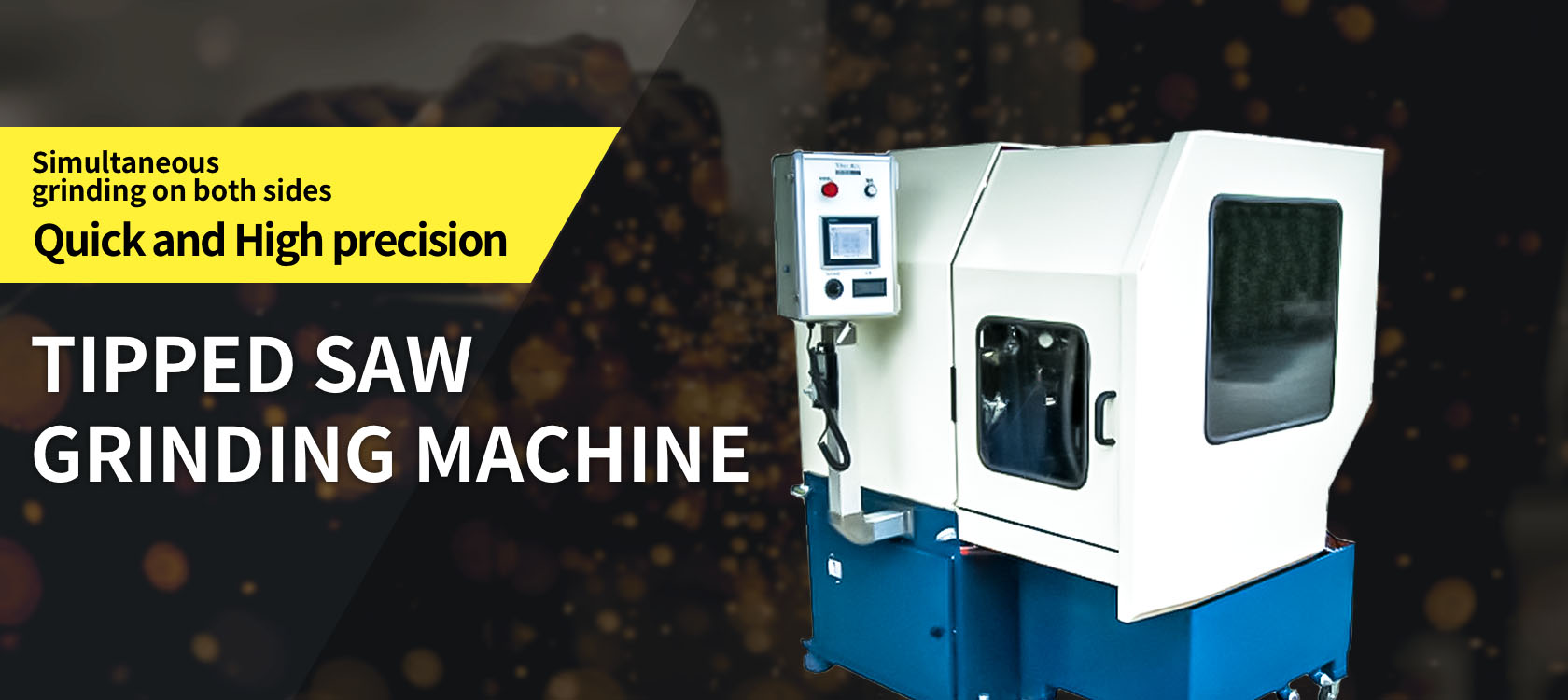

TN-51

TN-51

TN-51

FEATURES

Left and right, double-sided grinding at a time.
Switchable grinding mode - Oscillation and Onepass.
Grinding of blades with left and right hand set teeth is possible.
Stress-free setting for oscillation speed, grinding frequency, finish grinding and infeed amount.
Servo control for Infeed and Forward/Reverse motor operation.
The rotational speed of the grinding wheel is changeable.

SPECIFICATIONS

Diameter Capacity: 205mm ～ 660mm dia
Grinding pitch Capacity: 6mm ～ 100mm
Grinding wheel dimension: 80mm ～ 125mm dia
Tip width: 1mm ～ 6mm（10mm　Optional)

Tip length: 1mm ～ 30mm
Rake angle: -10°～ 25°
Machine Sizes (Height, Width and Depth): 1,800mm×1,550mm×1,450mm
Machine Weight: 1,240kg

切込方法

It is possible to grind the both sides in the same time.
The notch way is eclectic. ( Pattern A 〜 J )
It is possible to set in the difference with each width. ( Pattern Ⅰ ~ Ⅲ )
The grinding speed is changed.
It is possible to control freely by 1/1000mm unit for grinding.
